Equipment: TSI 103
Snubbing Operations. • P & A • Work over • Through tubing • Fishing • Milling • On land or Off shore

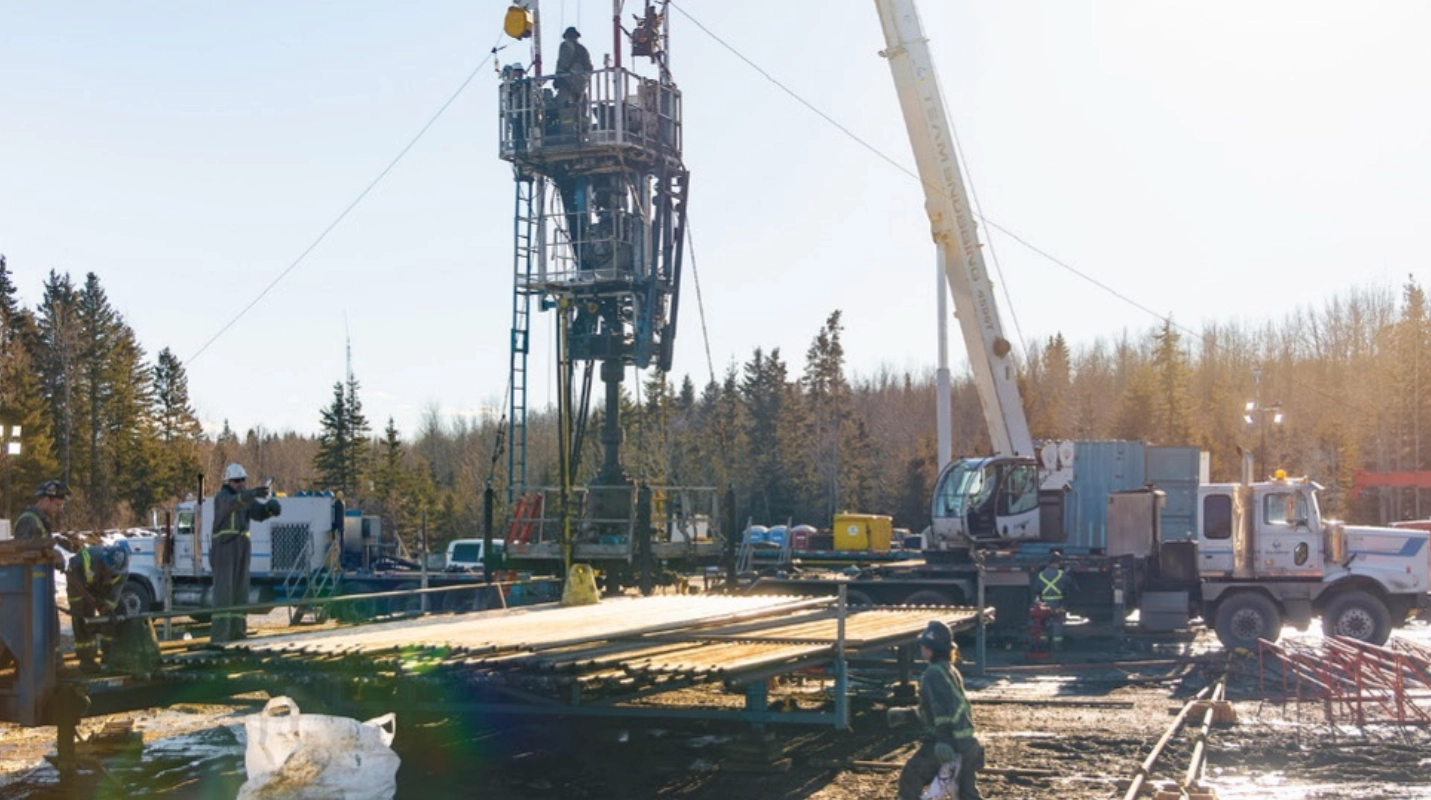

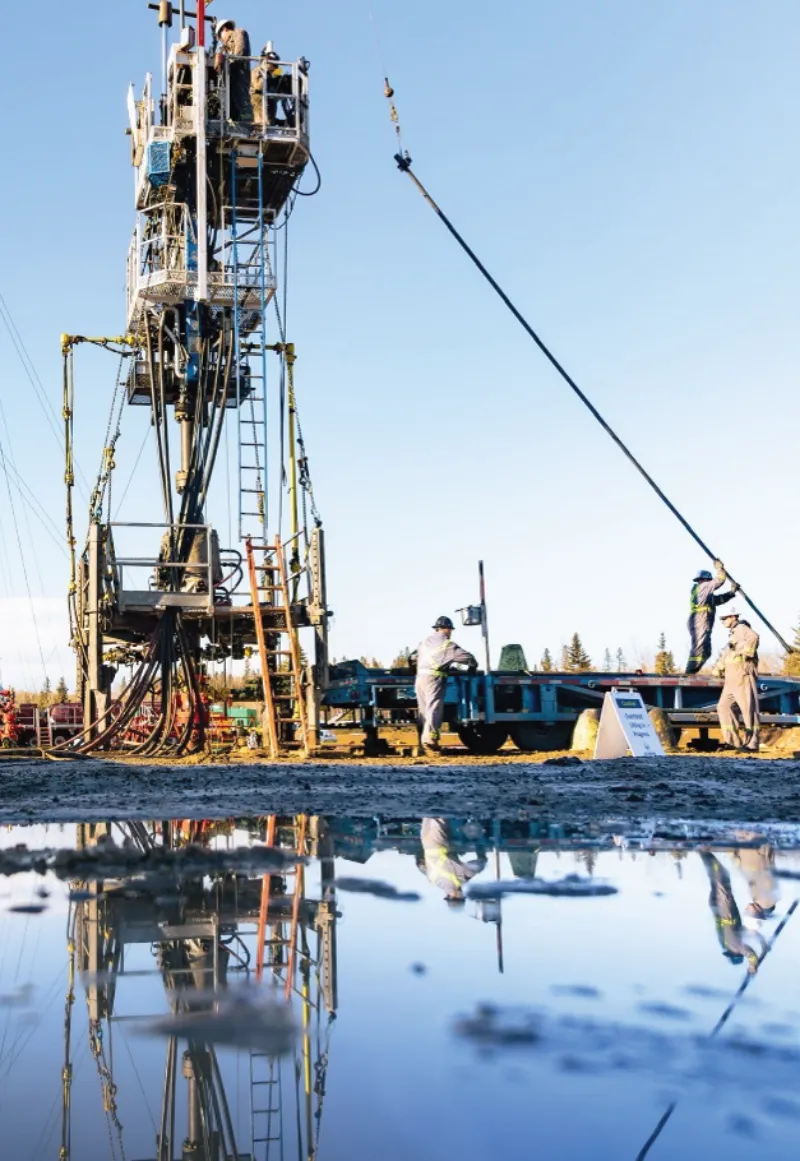

TSI-103 Free Standing Snubbing Unit
Key Advantages
- No need for anchors & guy lines
- Wellhead stabilization system
- Full package with ancillary equipment
- Can make 100% road bans
- 5K primary BOP systems with shear ram
- Ram to ram capable for high pressure operations
- Egress system
TSI-103
Pressure Tests, Kill & Bleed Off Systems
- Test pump & fluid for testing
- Pump, bleed off tank & lines
- Complete Package for snubbing operations
Accumulators / Preventers (5000psi)
- 7 1/16” Stripping Annular
- 7 1/16″ Stripping Rams
- 7 1/16″ Shaffer Spherical
- 7 1/16″ Double Gate/Shear
- Primary Accumulator
- Snubbing Accumulator
Equipment Highlights
- 170,000 lb lift force (hook load)
- 85,000 lb snub force
- 4 sets of slips with interlock
- Ram saver system on strippers and primarys
- 12’ stroke
- Rotary table 3000 ft/lb up to 100 rpm
- 5000 psi stripping stack
- Integrated gin pole
- Primary stack included in package
- Package includes pump, tank, closing unit, doghouse, generator, pipe racks, tool storage and manifold
- Fully IRP 15 compliant
- Industry certified crews
Job / Project Planning
The initiative for proper planning and execution utilizes our internal representations of 3D imaging, P&ID and BOP stack rendering, and Site layout. These tools allow proper representation to our customers of end results for equipment placement and organization.
